Caracteristicas

Especificaciones

Condition: New

Ice Shape: Flake Ice

Voltage: 380v/50hz/3p

Dimension(L*W*H): 1678*1256*1493mm

Weight: 687kgs

Warranty: 12 Months

After-sales Service Provided: Engineers available to service machinery overseas

Certificación: Other

Capacity: 8000kgs

Refrigerant: R404A/R22/R507

Ice size: 1.5mm~2.5mm in thickness

Type of water: sea water

Application: Fresh-keeping

Material: Stainless steel 316L

Información básica

Certificación: Other

Pago y Envío Términos

Packaging Details: standard export wooden case(Plywood Case)

Supply Ability: 50 Set/Sets per Month

Descripción de producto

hot sale commercial flake ice machine for sale

Specification	SFM10	SFM15	SFM20	SFM25	SFM30	SFM50	SFM80	SFM100
Capacity(T/24h)	1	1.5	2	2.5	3	5	8	10
Refrigeratio power(Kcal/h)	5590	8385	11180	13975	16770	27950	44720	55900
Reducer input power(KW)	0.18	0.25	0.25	0.25	0.25	0.37	0.75	0.75
Pump moto power(KW)	20	20	120	120	120	120	180	250
Metering pump power(KW)	5	5	5	5	5	5	-	-
Weight(KG)	168	289	289	289	363	650	687	1080
LWH(mm)	658493 880	813623 913	813623 913	813623 913	813623 1213	1256967 1235	16781256 1493	16781256 1643

Note: Due to innovation, specifications subject to change without further notice.

1. CQMRICE’s evaporator is self-produced and is with complete processes from Blanking, Welding, Annealing, Machining to Chrome-plating, Purging, Assembling and test running. By handing of whole manufacturing process, processing quality and delivery time can be well controlled.

2.Space saved: the structure is compact and simple.

3.Full automatically: the whole ice making and dropping process are controlled by PLC controller.

4.High refrigeration efficiency: the latest evaporator with vertical spiral ice cutter is adopted. Water is sprayed by the sprinkler on the inner wall of the evaporator, forming ice quickly. At the same time, the spiral cutter cuts the forming ice, which makes full use of the evaporator surface and increases the efficiency of ice making.

5.Ice Skate

A.Material is 304 stainless steel.

B. Internally-scraping ice skate can help reduce energy consumption and running with low resistance and noiseless.

6.Ice Making Drum

A..Material of flake ice making evaporator/drum: inner wall is Chrome plated carbon steel with heating and annealing process/ 304 stainless steel , outside wall is 304 stainless steel.

B. Every batch of materials must get a quality report and pass X-Ray flaw detection.

Model	MF030AF-A
Daily Ice Production	0.3t/24h
Refrigeration Power (Kcal/h)	1548Kcal/h
Power Consumption (KW)	1.79
Compressor Power (KW)	1.5
Standard Power Supply	380V/50Hz/3P other power supply can be custom made
Water Pressure	0.1Mp-0.5Mpa
Refrigerant	R404a
Water Pipe	1/2"
Weight	210KG
Dimensions (mm) with ice bin	132010501680
Standard Working Condition:	Ambient Temp: 25℃, Water Inlet Temp: 16℃
Cooling Way	Water Cooling/Air Cooling/Evaporative Cooling
Applicable Condition	Ambient Temp: 5℃-40℃, Water Inlet Temp: 5℃-30℃
Power Supply	380V-420V, 50Hz/60Hz, 3P; 220-240V, 60Hz, 3P; 440V-480V, 60Hz, 3P
Refrigerant	R22/R404A

The application domain of our products

Suitable for food processing, marine fishery, hotel freezing, supermarket fresh and slaughter and other related industries

Established in 2010, Chongqing Mercurius Refrigeration Equipment Co., Ltd (“CQMRICE”) is famous in machinery processing industry , especially in research, design, manufacture and sale of evaporator of flake ice machine and flake ice machine,block ice machine and ice delivery systems. CQMRICE has more than 16,000 square meters for the factory production space with complete processes from Blanking, Welding, Annealling, Machining to Chromeplating, Purging, Assembling and test running. By handing of whole manufacturing process, processing quality and delivery time can be well controlled.

Why us?

1. Rich experience

Mercurius has more than 10 years of professional experience. We are real manufacturer for flake ice machine ,we even manufacturing the key part of flake ice machine : evaporator by ourself for all process from blanking, welding, annealling, maching , chrome-plate for ice freezing surface and hot dip zinc for carbon steel frame . Welcome visit our factory.

2. Professional team

Mercurius evaporator and ice system production capacity and quality keep improving.

3. Superior quality

Mercurius is trusted with excellent quality and timely service.

Plywood Case packing:

1.Standard plywood case for packing main ice machine and fittings.

2.Customer only need prepare power and water for running the machine.

3.All required components for install the machine will be provided for free.

4. After machine is shipped to you, our engineer will go to your site to help the commissioning for if you need.

Sales Manager:Lily Yang

Skype: sportsinchina

Wechat: lilyyangchina2014

Whatsapp: +86 13983118790

Mobile:0086-13983118790

Email: 1424552673 @qq.com

Address: 8th community,Chang' an village,Xipeng town, Jiulongpo District, Chongqing City,China

If there is any questions or requirements,please don't hesitate to cantact with us ,looking forward to cooperating with you soon ,thanks.

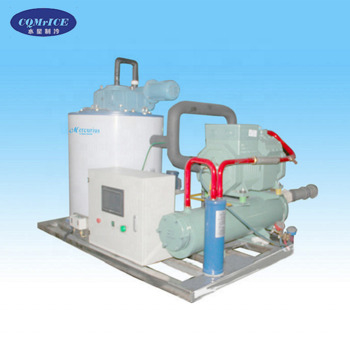

Fresh-keeping saltwater flake ice plant used on wharf small scale plant
